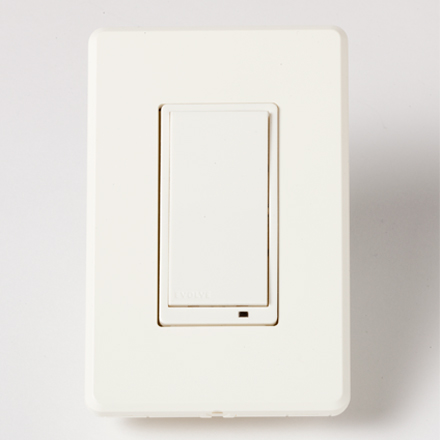

LSM-15 Wall Mounted Switch
The LSM-15 Wall Mounted 3-Way Switch is a component of the Evolve lighting control system. Wire the Wall Mounted Switch in place of the standard wall switch according to the diagram above. Inclusion of this Switch allows remote ON/OFF control of loads connected.
This Wall Mounted Switch is designed to work with other Evolve enabled devices. Evolve nodes of other types can be added to the system and will also act as repeaters.
As part of an Evolve network, the LSM-15 will also act as a wireless repeater to insure that commands intended for another device in the network are received. This is useful when the device would otherwise be out of the radio range.
§ 120 VAC, 60 Hz
§ Signal (Frequency): 908.42 MHz, 9.6Kbps or 40Kbps capable
§ Maximum Load: Resistive : 15 amps (1800 watts) maximum, 120 VAC
§ Motor: 1/2 H.P. maximum, 120 VAC
§ Incandescent: 960W maximum, 120 VAC
§ Range: Up to 100 feet line of sight between the Wireless Controller and /or the closest Z-Wave device.
§ Z-Wave Version 4.52
§ Network Inclusion
§ Scene – Command Class
§ Security Compatible
