By recognizing early-on the need for integrating audio and video content from the iPod® and iPod touch® into residential A/V systems, iPort created the industry standard for playback and control of iPod content. iPort is the only iPod and iPod touch solution that works seamlessly with a wide variety of single and multi-zone audio/video and home automation systems. iPort provides integrators the ultimate fexibility for including iPod and iPod touch as audio and video sources

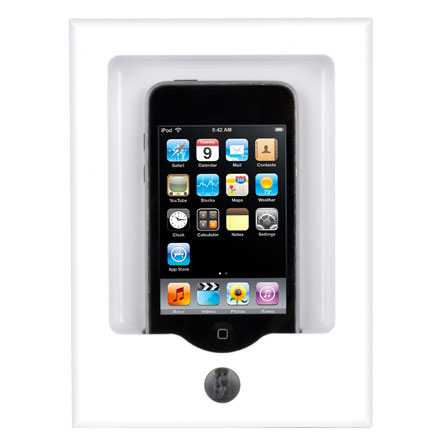

in their projects.The iPort IW-21’s RJ-45 modular connections delivers unbalanced audio and video up to 30 feet, for use with local-zone audio/video systems. IR capability via the illuminated LED on the faceplate allows control of the volume and essential iPod menu and playback functions by an optional iPort EX-1 remote. The included wall plates provide stereo RCA audio and a composite video connnection for output of iPod video content. The IW-21’s front panel features a lighted status indicator and is designed to accept all Apple dock connector iPod models. It includes a back support, — a rubberized adjustment disc that compensates for the varying thicknesses of different iPod models.
iPort IW-21 Features
• Delivers local-zone unbalanced audio up to 30 feet (9 m) from the iPort.
• Built-in preamplifer allows variable volume control via the iPod’s volume
control or an optional iPort remote.
• Delivers unbalanced video up to 30 feet from iPort.
• IR allows remote control of most iPod/iPod touch audio functions via an
optional iPort remote.
• Regulated DC power supply charges the iPod/iPod touch while it
• Designed for easy docking/undocking of iPod
• Connects to wall plates with Cat5 cables via RJ-45 connectors
• Easy to install via Roto-Lock® mounting clamps
• Paintable fange
(1) iPort dock (faceplate and utility box)
(1) Audio wall plate
(1) Unbalanced video wall plate and cable
(1) Regulated power supply with USA plug
Available IW-21 Upgrades
• Optional Balanced Audio Upgrade Kit delivers video up to 500 feet
(152 m) from the iPort.
• Optional Balanced Video Upgrade Kit delivers video up to 250 feet
(76 m) from the iPort.
• Optional RS-232 Control Upgrade Kit enables two-way communication
and control of the iPod/iPod touch via compatible control systems
(requires Balanced Audio Upgrade Kit).
Compatible with most dockable iPod touch
and iPod models, including iPod nano 5th gen,
iPod classic 120GB and iPod touch 2nd gen.
For current compatibility information, visit
Dimensions (W x H x D): 4 3/4” x 6 5/16” x 3 1/2” (121mm x 160mm x 89mm)
Cut-Out Dimensions (W x H): 4” x 5 9/16” (102 mm x 141 mm)
