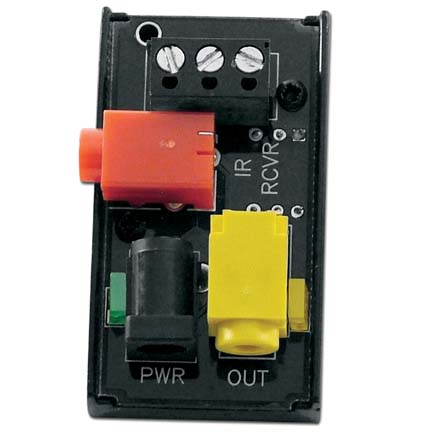

Xantech CB12 One Zone One Source Connecting Block

Xantech CB12 One Zone One Source Connecting Block

Item Condition: New

In Stock
List Price $16.94
Your Price $14.99
You Save $1.95 - 12%



Model CB12 Connecting Block is the central control for an IR system. The precision steel-encased block has two jobs: Routing IR commands from the receiver to the rest of the A/V system through the emitters, and distributing the power required to "drive" the receiver/emitter system. Removable terminal block makes custom installation easier and allows connecting multiple IR receivers for multi-zone systems.
  • Connects one emitter port and power supply to Xantech IR Receivers that use a stereo mini plug
  • Includes a three-terminal block for wired connection of Xantech IR Receivers and Smart Pads
  • 3.5 mm stereo mini jack for quick-connect IR receivers
  • 3.5 mm mono mini jack for one single or one dual emitter
  • 2.1 mm coaxial power jack
  • Requires either the 781ERGPS or 782ERGPS Power Supply
  • Dimensions: 21/8" x 1 1/4" x 3/4" (54mm x 32mm x 19mm)
