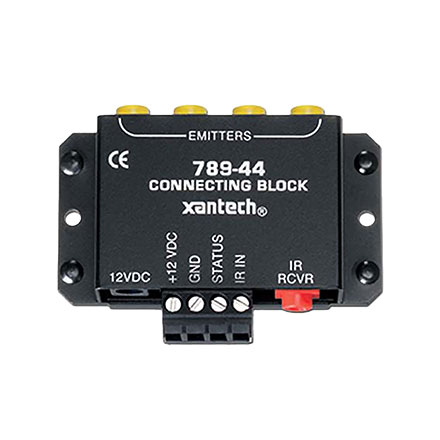

Xantech 789-44 One Zone Four Source Connecting Block


List Price $45.19
Your Price $39.99
You Save $5.20

Description & Features

Model 78944 Connecting Block is the central control for an IR system. The precision steel-encased block has two jobs: Routing IR commands from the receiver to the rest of the A/V system through the emitters, and distributing the power required to "drive" the receiver/emitter system. Removable terminal block makes custom installation easier and allows connecting multiple IR receivers for multi-zone systems.
  • Connects four emitter ports and power supply to all Xantech infrared receivers and keypads
  • Four parallel emitter ports with 470-Ohm resistors drive four single or four dual emitters
  • Quick-connect stereo mini jack for IR Receivers that use a stereo mini plug
  • STATUS terminal for connection of IR Receivers and Keypads that have status LED's
  • 2.1 mm coaxial power jack
  • Requires either the 781ERGPS or 782ERGPS power supply
  • Dimensions: 3" x 1 3/4" x 13/16" (77mm x 45mm x 21mm)
  • Power LED
