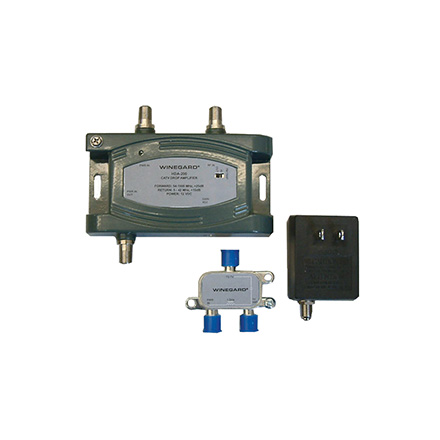

Winegard Model HDA-200 HDTv2 Distribution amp 1 port +24dB 5-1000 MHz


Winegard Model HDA-200 HDTv2 Distribution amp 1 port +24dB 5-1000 MHz WIN1022

Item Condition: New


In Stock
List Price $52.76
Your Price $46.69
You Save $6.07 - 12%
Qty

WIN1022

Description

Model 200 has a single RF input, 24dB gain, single RF output, with a 5-42 MHz 2-way bi-pass at +12db gain. It has 0-18dB gain control and 20dB switchable FM trap. Designed to meet the demand for a heavy duty, quality built, cost effective solution for the amplification and distribution of analog/digital broadcast signals from Off-Air and cable TV stations. Both the HDA-100 & HDA-200 are housed in an industrial grade, weather resistant enclosure. Each unit has an RF input, amplified RF output, and DC power insertion jack. Each amplifier also provides a 5-42 MHz 2-Way bi-pass.
  • Frequency Range: 54-1000MHz
  • Bandpass Reverse: 5-42MHz
  • Gain: 24dB
  • Reverse Gain: +12dB
  • Gain Control: 0-18dB
  • Noise Figure: 4.5dB (at max gain)
  • FM Trap: -20dB (95-108MHz)
  • Max. Output (80ch CATV): +25dBmV
  • Max. Output (18ch Off-air): +40dBmV
  • Max. Input (80ch CATV): +8dBmV
  • Max. Input (18ch Off-air): +23dBmV
  • Max. Input Reverse Amp: +23dBmV
  • Power: 12 VDC - 200mA
  • Dimensions: 4.9” x 3.92” x 1.5”
