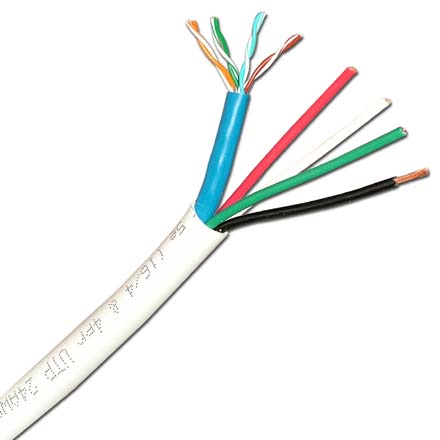

SKL1485 Combo Cable Here's a combo cable that includes16awg 4-wire audio cable plus CAT5e 24awg 4-pair UTP combined in one PVC jacket. 500 feet reel. One run . . . you're done!
24awg 4-pair UTP CAT5e with 16awg 4-conductor audio cable
CAT5e Specs:- Conductor Material: 24awg Bare copper
- Conductor Construction: 1/0. 50BC ± 0.008mm
- Conductor Stranded Diameter: 0.50mm
- Insulation Material: HDPE
- Insulation Nom Thickness: 0.20 (Ref.)
- Insulation Diameter: 0.92 ± 0.05mm
Audio Cable Specs:- Conductor Material: 16awg Bare copper
- Conductor Construction: 65/0. 16BS ± 0.008mm
- Conductor Stranded diameter: 0.64mm
- Insulation material: 32P 60°C PVC
- Insulation Nom. thickness: 1.39mm (Ref.)
- Insulation Diameter: 2.3 ± 0.05mm
- Filler Material: 380D
- MD-Jacket Material: PVC 60P
- MD-Jacket Thickness: 0.49mm min. / 0.58mm nom.
- MD-Jacket Inside Diameter: 5.1mm ± 0.15mm
- Tape material: 0.038*40mm Paper
- Tape Overlapping: 125%
- Jacket Material: UL 60P PVC
- Jacket Thickness: 0.63mm min. / 0.75mm nom (Ref.)
- Jacket Outside Diameter: 11.5 ± 0.2mm
- Outer Jacket Color: White
- Weight:
