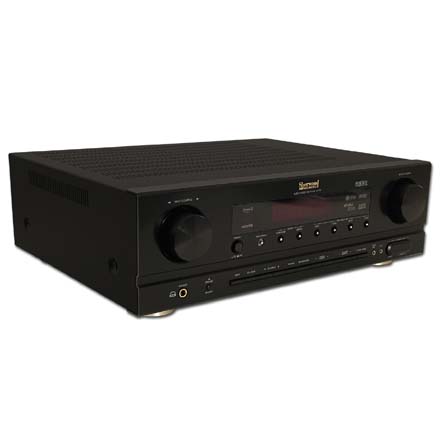

Sherwood Newcastle R-772BK 7.1 Receiver with HDMI 1.3 repeater


Sherwood Newcastle R-772BK 7.1 Receiver with HDMI 1.3 repeater

Item Condition: New


Out of Stock
List Price $339.99
Your Price $199.99
You Save $140.00 - 41%

SHE1031

Description

Sherwood Newcastle Model R-772 receiver is rated at 100 watts per channel for each of 7 channels and features HDMI 1.3 switching, lossless audio decoding, AM/FM tuners with 30 presets, XM radio ready, automatic set-up with supplied microphone, Newcastle’s SNAP™ Room EQ, input renaming, A/V Synch Delay, digital/analog input polling, independent audio and video outputs for Zone 2, and more. The included remote supports dual-mode, RF and IR operation, is preprogrammed for most popular components, learns commands from other units and has built-in RF to IR translator. The translator converts RF input received from the remote and generates IR output to control other system components. Complete system operation is possible—even if the entire system is out of sight.
A second feature developed for custom installation is “Automatic Room 2” mode. With this mode, the main room can be configured for 7.1 channel operation. When Zone 2 is activated, the main room is automatically reconfigured for 5.1 and the rear center amps are used to power Zone 2. When Zone 2 is turned off, the main room is reconfigured back to 7.1.
Another important feature for custom installation is the lockable Installer Memory. Once the initial installation is complete, the installer or the owner can lock all operating parameters into a special memory. If the unit fails to operate as expected because a wrong button had been selected on the remote, for example, power cycling the receiver will reload the initial configuration and should restore normal operation.
This unit transcodes all analog video to a single component video output. Analog video and component video are separate and HDMI and analog monitor cables will be necessary to support all video and OSD.
  • 100 Watts per Channel from 20 Hz-20 kHz in Stereo Mode, 8 ohms, with <0.05% THD
  • 100 Watts per Channel x 7 in Surround Mode
  • 2 in 1 out HDMI 1.3 switching
  • Decodes DTS Master Audio HD and Dolby Tru HD PCM via HDMI
  • DTS-ES Discrete and Matrix
  • DTS-96/24
  • DTS NEO-6 Cinema and Music
  • Dolby Digital EX
  • Adjustable Dolby Pro Logic IIx
  • Dolby Headphone Layers 1, 2, 3
  • Digitally Re-Masters PCM input to 96 kHz/ 24-bit
  • Automatic Format Detection
  • 192 kHz 24-bit DAC's for all channels
  • Dolby Virtual Speaker
  • Pure Audio Mode
  • Crossover frequency 40 to 250 Hz
  • A/V Synch delay by input
  • Firmware upgrade-able
  • SNAP 12-band parametric EQ per channel
  • RS-232
  • Universal Video™ upconverts composite and S-Video to Component Video
  • 2 Optical and 2 Co-ax Digital Inputs
  • Digital Output
  • On Screen Display (available from all video outputs)
  • RF + IR Learning remote
  • Program-mable Input Labeling
  • Crystal 32-Bit DSP processor
  • 8 DSP Modes
  • 7.1 channel direct input
  • Subwoofer Pre-Amp Output
  • Automatic 7.1 to 5.1 + Stereo
  • Room 2 A/V Output w/ fixed/variable audio level, composite
  • Lockable "Installer Memory"
  • Rear Panel Room-2 IR control with 1 input and 1 output
  • Dedicated Room 2 Remote
  • 12-Volt Trigger
  • 2 HDTV-Ready Component Video Inputs
  • Component Video Output
  • 4 Rear Panel Audio/Video Inputs
  • 4 Audio Inputs
  • Front Panel A/V Input Including S-Video
  • Cinema EQ
  • Tone Defeat
  • Automatic set-up for speaker level and distance
  • Channel Level Memory
  • 10-step Dynamic Range Control
  • Totally Discrete Amplifier Stage (TDAS)
  • Heavy Duty Speaker Binding Posts
  • XM Connect and Play
  • XM Neural Surround
  • 4 Gang FM tuner
  • Preset Scan
  • 30 XM Presets
  • 30 AM/FM Station Presets
  • Digi-Link III
  • Sleep Timer
  • Color: Black
  • Aluminum Front Panel
  • Dimensions: 17-3/8in W x 5in H x 13in D
