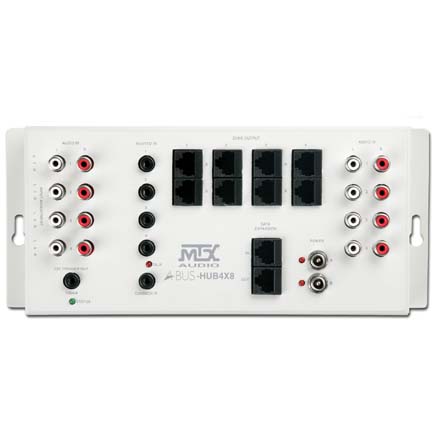

MTX Model ABUS-HUB4X8 Hub, 4 zone, 4 source, 8 room, each
Item Condition: New
|
|
MTX2951
Description
MTX A-BUS-HUB4X8 distributes audio signal, system power, and status indication to A-BUS power modules installed in rooms throughout the home and sends IR commands from the power modules back to the source components.
It is usually located near the main sound system (Amplifier/Receiver, CD, DVD, Tape, Cable, etc.). The HUB4x8 has 4 input and 4 zone outputs for a total of 8 rooms. An expansion port (IN/OUT) allows multiple hubs to be connected to expand the system for installations larger than 8 rooms (Power supply and remote included).
- Inputs: Audio - RCA phone jacks (1pr) / Power - 2.5mm DC (+v center) / Status - 2.1mm DC (+v center)
- Outputs: A-BUS ports - 4 RJ-45 / IR - 4 x 2.5mm TRS jacks / Expansion - RJ-45
- Wiring Format: 568A
- Dimensions: 2.4in )D x 1.2in H x 5.3in W
- Gross Weight: 4.3 lbs
- Power Supply APS-40 (A-BUS-HUB1X4) - 120-240Vac 50/60Hz 4A
