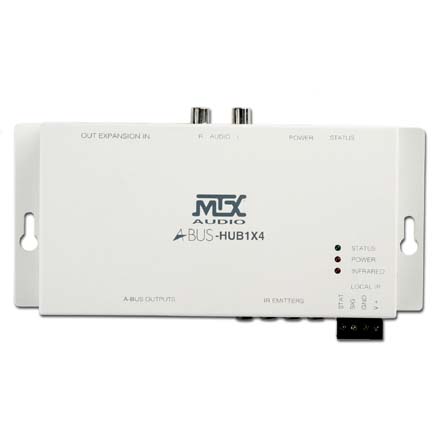

MTX Model ABUS-HUB1X4 Hub, 4 zone, single source, each
Item Condition: New
|
|
MTX2950
Description
The MTX ABUS-HUB1X4 distributes audio signal, system power, and status indication to A-BUS power modules installed in rooms throughout the home and sends IR commands from the power modules back to the source components. It is usually located near the main sound system (Amplifier/Receiver, CD, DVD, Tape, Cable, etc.). The HUB1x4 has 1 input and 4 zone outputs with an expansion port (IN/OUT) so multiple hubs can be connected, to expand the system above 4 zones (Power Supply included).
- Inputs: Audio - RCA phone jacks (1pr) / Power - 2.5mm DC (+v center) / Status - 2.1mm DC (+v center)
- Outputs: A-BUS ports - 4 RJ-45 / IR - 4 x 2.5mm TRS jacks / Expansion - RJ-45
- Wiring Format: 568A
- Dimensions: 2.4in D x 1.2in H x 5.3in W
- Gross Weight: 2.7 lbs
- Power Supply: APS-40 (Included) 120-240Vac 50/60Hz 4A
