Z-Wave Communicating Thermostat
§ All in One Design
§ Z-Wave Certified
§ Standard or Heat Pump HVAC Systems
§ Programmable, 4 x 7 day schedule
§ 128×64 Backlit Graphical Display
§ 6 Buttons with On Screen Labels
§ Remote Control of All Thermostat Functions
§ Optional Remote Sensors
§ Wall mount or mounts on single-gang junction box
Overview

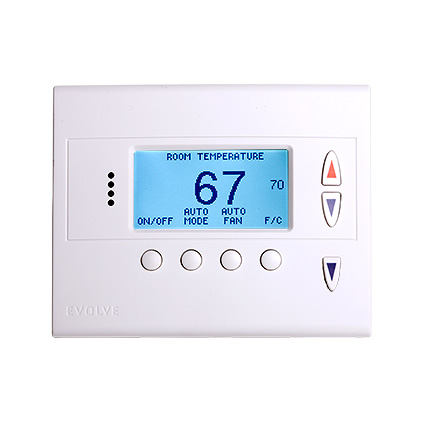

The T-100R is a Z-Wave wireless digital thermostat, designed to control the majority of HVAC systems. The T-100R contains a robust thermostat interface and is designed for use with communicating systems where remote monitoring and/or remote control are desired.
Thermostat Features
§ Graphical LCD with white backlight
§ Heating and Cooling Set point display
§ System Mode (Off, Auto, Heat, Cool)
§ Fan Mode display and control (Auto, On)
§ On-screen setup of HVAC Type, Fan Type, Changeover type for HP systems, F/C mode and sensor calibration
§ 4 x 7 day programmable schedule, multiple schedules
§ Fan Cycler feature
Technical Specifications
HVAC System Compatibility
§ Central HVAC systems or separate heating/cooling systems with separate RH/RC transformers (split)
§ Standard gas/electric HVAC Systems: 2-stage heating, 2-stage cooling
§ Heat Pump HVAC Systems: 3-stage heating, 2-stage cooling
§ Fan system: Selectable for gas or electric heat systems.
§ Heat Pump Change Over valve (reversing valve): Selectable for change over with heat or change over with cool (O or B output)
§ Emergency Heat: In Heat pump mode, Emergency Heat mode is selectable from the thermostat
§ Compressor short cycle protection delay of 6 minutes (adjustable)
§ Automatic heating and cooling changeover
Remote Sensors
§ The T-100R supports up to 2 indoor remote sensors
§ Remote sensor can replace internal sensor or provide averaging
Wiring Requirements
§ 18 AWG
§ Uses standard thermostat connections (C, R, W1,W2, Y1, Y2, G)
Power Requirements
§ 24VAC Note: Requires both 24VAC (R) and 24VAC common (C) wires from the HVAC System
Dimensions
§ 6”x4”x3/4”
Model Number
§ T-100R Z-Wave Thermostat PN: T-100R
