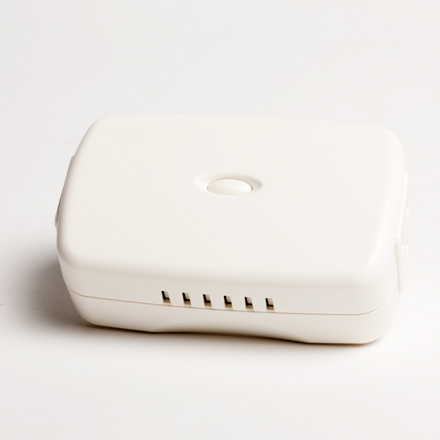

LPM-15 Plug-In Appliance Module

The LPM-15 plug-in Appliance Module is a component of the Evolve lighting control system. Plug the Appliance Module into a wall outlet and plug a load into the Appliance Module. Remote ON/OFF control of the connected load is possible.

This plug-in Appliance Module is designed to work with other Evolve enabled devices. Evolve devices of other types can be added to the system.

As part of a Evolve network, the LPM-15 will act as a wireless repeater to insure that commands intended for another device in the network are received. This is useful when the device would otherwise be out of the radio range of the wireless controller.

Power Requirements

§ 120 VAC, 60 Hz

Specifications

§ Signal (Frequency): – 908.42 MHz

§ Load: Incandescent: 600W maximum, 120 VAC.

§ Resistive: 15 amps (1800 watts) maximum, 120 VAC

§ Motor: 1/2 H.P. maximum, 120 VAC

§ Range: – Up to 100 feet line of sight between the Wireless Controller and /or the closest Z-Wave Device.

§ Z-Wave Version 4.52

§ Network Inclusion

§ Scene – Command Class

§ Security Compatible
