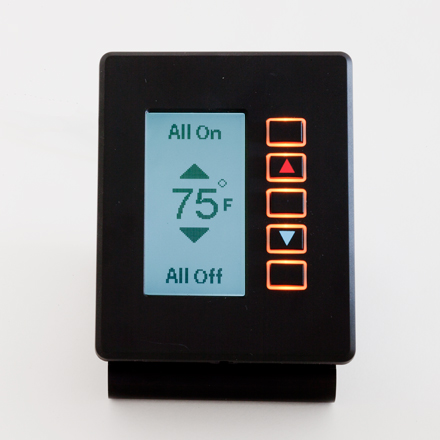

Evolve LCD-1T Single Gang Tabletop Controller


LCD-1T Controller, Tabletop EVO301B

Item Condition: New


In Stock
List Price $399.99
Your Price $199.99
You Save $200.00 - 50%
Qty

EVO301B

Description

Single Gang Keypad

Product Overview

The Evolve Single Gang RF Scene Controller is a programmable, 5 button device that provides command and control of up to 5 – RF network scenes and is a component of the Evolve Guest Controls (EGC) lighting control system.

This Wall Mounted Transmitter is designed to work with other Evolve enabled devices. Evolve nodes of other types can be included in the network and will also act as repeaters to increase the range of the network.

There are no field repairable assemblies on this unit. If service is needed, the unit must be returned where purchased.

Technical Specs

§ Lighted 64×128 Graphical Display

§ Backlit button surrounds

§ 5 Button Control Keypad

§ Fits onto a standard single gang wall box

§ Programmable Scenes

Power Requirements

§ 12V DC or 120V AC with included power supply

§ Fully protected: over voltage, over power, over temperature & short circuit protection

§ Fully protected: over voltage, over power, over temperature & short circuit protection

§ Meets UL/CSA & EN product safety reqts

§ Meets EN 55014, Class B, FCC Part 15, B

§ Green energy efficient design

§ Meets US & Int’l Energy Star regulations

§ Meets California CEC requirements

§ No-load consumption <500 mW

§ RoHS Compliant

EMC
EMI (conducted & radiated emissions) Meet EN 55014 FCC Part 15 Class B
EMS (noise immunity) Meet EN 55024

SAFETY Agency UL1310 recognized UL File: E310433

Physical Specifications

§ Dimensions: 2.9” x 4.6” x 0.5”

§ Weight: 1 lb.

CEUL_Listed
