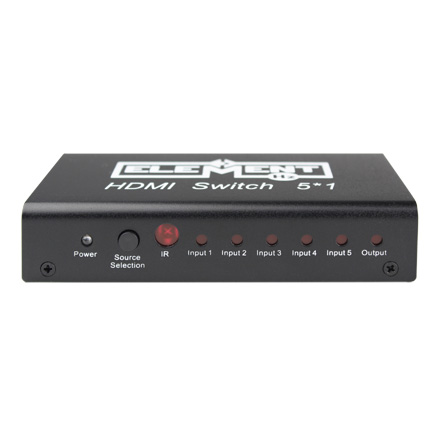

Element Hz™ 5 X 1 HDMI Switcher
Have an HD projector or TV install that calls for more HDMI inputs? Our ELE5X1SW allows you to add multiple sources to a single HDMI input and gives you the ability to select the source using a small IR Remote.
The inputs of this device can be switched with discrete IR commands from the included remote or by using the push button located on the device.
Our ELE5X1SW was designed to sense when a new input source is powered on and automatically switch the output accordingly. This abolishes the need to change the input on the switcher manually.
This switch is engineered to handle the most current of digital audio formats such as
This easy to install converter is literally a plug and play operation. Simply make your connections and check the LED indication lights for diagnostics...Just the way you like it!
Five HDMI 1.3 input signals switch to a single HDMI 1.3 sink device
Supports deep color 30bit, 36bit
Supports Blue-Ray 24/50/60fs/HD-DVD/xvYCC Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Supports signal retiming
Supports input up to 15 meters AWG26 HDMI 1.3 standard cable length
Supports output up to 25 meters AWG26 cable length
Inputs can be switched with the IR remote control or controlled by five buttons
Smartly jumps over those input sources which are not connected
With the smart function of memory, it can come back to the latest status when restarted or reconnected
No loss of quality
Installs in minutesNeeds DC5V/1A power supply
