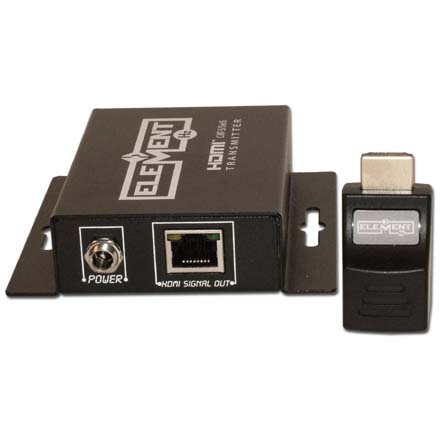

ElementHz HDMI / Cat5e/6 Audio Video Extender Dongle Set (Refurbished)

HDMI 1 Cat5e/6 Extender ELE8082REF

Item Condition: New

In Stock
List Price $159.99
Your Price $99.99
You Save $60.00 - 38%



The ELE8082 HDMI / Cat5e/6 Audio Video Extender Dongle Set enables you to send 7.1ch digital HDMI signals over ONE Cat-5/5e/6 solid cable. Includes transmitting and receiving units. With direct plug-in to the HDTV, users do not need to have to find a power outlet for the traditional HDMI™ over CAT5 receiver and can save an HDMI™ cable with ease of use.
  • HDMI™ compliance: HDMI™ 1.3c
  • HDCP compliance: Yes
  • Video bandwidth: Single-link 225MHz (6.75Gbps)
  • Video support: 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color
  • HDMI™ over CAT5e transmission (24-bit):
    Full HD (1080p60) 15m (50ft)
    HD (720p/1080i) 25m (50ft)
  • Audio support: Surround sound (up to 7.1ch) or stereo digital audio
  • Input TMDS signal: 1.2 Volts (peak-to-peak)
  • Input DDC signal: 5 Volts (peak-to-peak, TTL)
  • ESD protection:
    [1] Human body — ±19kV (air-gap discharge) & ±12kV (contact discharge)
    [2] Core chipset — ±8kV
  • PCB stack-up: 4-layer board [impedance control — differential 100 ohm; single 50ohm]
  • Input: Transmitter: 1x HDMI™ / Receiver: 1x RJ-45
  • Output: Transmitter: 1x RJ-45 / Receiver: 1x HDMI™
  • HDMI™ connector: Type A (19-pin female)
  • RJ-45 connector: WE/SS 8P8C with 2 LED indicators
  • Rotary control: Transmitter: Audio/video mode / Receiver: None
  • Housing: Metal enclosure
  • Housing Dimensions [L x W x H]:
    Transmitter: 3.7in x 2.4in x 1in
    Receiver: 1.8in x 1in x 0.9in
  • Package Dimensions: 10.6in x 6.9in x 3.1in
  • Product Weight: 12oz
  • Gross Weight: 1.25 lbs
  • Fixedness: Wall-mounting case with screws
  • Power supply: Transmitter: 5V 2A DC / Receiver: None
  • Power consumption: 1 Watt (max)
  • Operation temperature: 32~104°F (0~40°C)
  • Storage temperature: -4~140°F (-20~60°C)
  • Relative humidity: 20~90% RH (no condensation)
