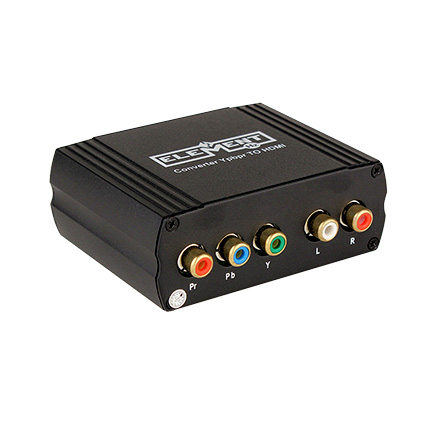

The ELE7000 Converter uses a single YPbPr+SPDIF source to sync to a single HDMI source. The Converter allows one YPbPr+SPDIF device to be converted easily to one HDMI monitor or projector.

• One YUV/YPbPr/YCbCr+ SPDIF (Optical+ Coax) input signal converts to one HDMI by syncing devices
• Support video input : Up to capture YPbPr1080p, 330Mbandwidth,50/60H
• Support audio SPDIF input : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• HDMI output : Support up to 1080p/60HZ, same format as input
• HDCP 1.1 protocol compliant
• Support CEC
• Support audio format output : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• LED ON: Indicates device is working
• Support output up to 20m with 26AWG cable
• No loss of quality
• Installs in minutes
• Uses a DC5V/1A power supply
• Max transmission bandwidth: 5.1Gbps
• Input Video Signal: 0.5-1.5V p-p
• Output DDC signal: 5V p-p
• Max working current: 600mA
• Operating Temp: -15° to +55°C / 5-90%RH
• Dimensions: 3.54 x 2.76 x 1.18 in
• Weight: 0.34 lbs
