Element Hz HDMI Extender (uses 2 Cat5e/6) 130ft at 1080P (Refurbished)

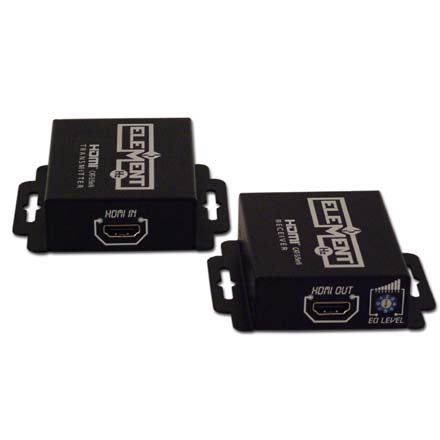

HDMI Extender ELE8080REF

Item Condition: New

Out of Stock
List Price $159.99
Your Price $89.99
You Save $70.00 - 44%



The ELE8080 HDMI™ extender boosts audio/video transmission distance up to 60m (200ft) in HDTV 1080i format. Using TWO low cost Cat-5/5e/6 UTP cables, users can easily extend HDTV sources from DVD players, Blu-ray Disc players, PS3, PC, and any other sources compliant with TMDS to distant display monitors including HDMI™ or DVI enabled TV sets or LCD PC monitors. This cost effective solution allows HDCP compliant DVD players or PS3 to transmit high quality video and audio at a greater distance at a minimal cost. The ELE8080 includes two units: a transmitter and a receiver unit. The transmitter is used to transfer the HDMI™ signals input and carry the signals through two Cat-5/5e/6 cables. The receiver is responsible for equalizing transferred HDMI™ multimedia data. The transmission distance between the sending and receiving units can be up to 60m (200ft) under HD (720p/1080i) or 40m (130ft) under Full HD (1080p). With an 8-level equalization rotary control switch on the receiving unit, users can adjust the equalization strength to the received HDMI™ signals accordingly, and thus optimize the transmission distance between HDMI™ source and display.
  • HDMI compliance: HDMI 1.3c
  • HDCP compliance: Yes
  • Video bandwidth: Single-link 225MHz (6.75Gbps)
  • Video support: 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color
  • Transmission (24-bit): Full HD (1080p)-40m (130ft) [CAT5e] / 50m (165ft) [CAT6]
  • HD (720p/1080i)-50m (165ft) [CAT5e] / 60m (200ft) [CAT6]
  • Audio support: Surround sound (up to 7.1ch) or stereo digital audio
  • Equalization: 8-level digital rotary switch for signal level control at RX
  • Input TMDS signal: 1.2 Volts (peak-to-peak)
  • Input DDC signal: 5 Volts (peak-to-peak, TTL)
  • ESD protection: [1] Human body — ±19kV (air-gap discharge) & ±12kV (contact discharge)[2] Core chipset — ±8kV
  • PCB stack-up: 4-layer board [impedance control — differential 100?; single 50?]
  • HDMI connector: Type A (19-pin female)
  • RJ-45 connector: WE/SS 8P8C with 2 LED indicators
  • Inputs: Transmitter--1x HDMI / Receiver--2x RJ-45
  • Power supply: 5V 4A DC
  • Power consumption: 1 Watt (max)
  • Operating temperature: 32~104?F
  • Storage temperature: -4~140?F
  • Relative humidity: 20~90% RH (no condensation)
  • Housing: Metal enclosure Wall-mounting case with screws
  • Dimensions: Transmitter--3.3in L x 2.4in W x 1in H / Receiver--3.7in L x 2.4in W x 1in H
  • Weight: Transmitter--11oz / Receiver--14oz
