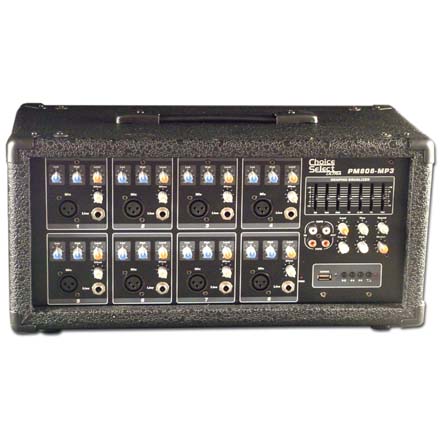

Choice Select Ultra PM-808 Powered 8 Channel Mixer Digital Delay 75W RMS
Item Condition: New
|
|
CHO3073
Description
Model PM-808A-MP3 Powered Mixer features 8 channels mono input for a wide range of microphone and line level signals from separate input sockets. Includes built-in 150 watt (max.) power amplifer and MP3 player. Other features include super musical 2-band EQ at each mono channel and 7-band EQ at output channel, tape input, and record output.
- Power amp, max.output power in watts - Number of Jack for Power output: 2 8 ohms: 75W / 4 ohms: 150W
- INPUTS: 8 Balanced mono Mic/Line channels / 1 Stereo Tape input
- OUTPUT: Main out TRS, unbal.
- Channel Strips: 8 Rotary Volume Controls
- Master Section: Rotary Fader
- Built-in Digital Delay: 2ms-150ms
- Noise: 20Hz to 20KHz bandwidth, line inputs to master output / Master output, all fader down: -86dBu / Power amp output, all faders down: -52dBu
- THD: Power output 20Hz to 20KHz @150watts, 8 ohms <1%
- Crosstalk: 1KHz@0dBu,20Hz to 20KHz bandwidth, channel in to master output / Channel faders down: <-63dB
- Frequency Response Mic input to output: 20Hz~20KHz,line level o/p @+4dBu into 600 ohm: +1/-3dB / 20Hz~20KHz,power amp o/p 1 watt into 8 ohm: +1/-3dB
- Sensitivity @mixer output +4dBu: Mic/Line: -50dBu/-35dBu / Tape in: -6dBu
- Input Channel Equalization 2-band,15dB: Low EQ 80Hz / Hi EQ 12KHz
- Output Channel Equalization: 7-band +/-12dB 60Hz,160Hz,360Hz,1KHz,2.5KHz,7KHz,16KHzA
- Microphone Preamp E.I.N: 150ohms terminated, max.gain <-122dBm
- Power Consumption: 240 watts
- Power Requirements: AC120V-60Hz
- Dimensions(WxHxD): 17.32in x 8.465in x 8.661in
- Gross Weight: 23.8 lbs
