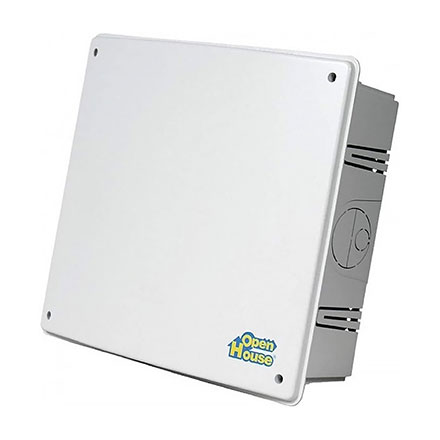

Channel Plus Open House H312KIT 12in Plastic Structured Wire Enclosure, with cover


Channel Plus Open House H312KIT 12in Plastic Structured Wire Enclosure, with cover PLU1018

Item Condition: New


In Stock
List Price $59.99
Your Price $29.99
You Save $30.00 - 50%
Qty

PLU1018

Description

The Model H312KIT 12in Plastic Enclosure provides grid mounting for most OpenHouse, ChannelPlus, and M&S Systems structured wiring components. It features 19 grid inches of mounting capacity in two 9-1/2in columns. Most standard structured wiring modules will snap securely into the enclosure's mounting grid. The enclosure is ETL Listed and is the recommended enclosure for the M&S Systems DMC-10H Structured Wire Intercom Hub. Includes a vented, snap-on cover which can be screwed shut. The cover has a raised interior, convenient for wiring and allowing cooling of components. The enclosure can be either surface mounted, or mounted between standard 16-inch spaced studs. This system features four flexible mounting tabs on the sides of the enclosure, which can compensate for irregular stud spacing and permit adjustment for the depth of the cabinet for flush-mounting with any thickness of drywall. Eight combination conduit knockouts (4 on top, 2 on the bottom, and 1 on each side) that fit either 2in or 1/2in conduit fittings are provided. Additional knockout is provided on the bottom to mount a single-gang junction box for installation of AC outlet.
  • 12 inches high
  • 19 grid inches (2-9.5in columns)
  • Fits between studs
  • ABS construction
  • Flexi-mount system (slots and tabs allow for surface or flush mount)
  • Electrical J-box knockout on bottom
  • Eight combination 1/2in or 2in knockouts including two located on the sides of the box
  • Paint shield and four Philips head screws included
  • Snap-on vented cover included
  • ETL Listed
  • Dimensions: 16.10in L x 13.80in W x 6.10inH
