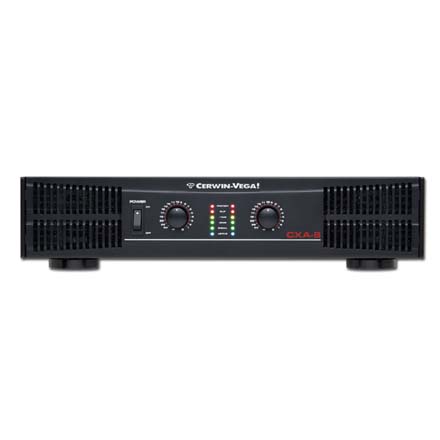

CXA-8 High Performance Home Audio Amplifier
Stage Performance at Home!
The Cerwin-Vega! CXA-Series high performance stereo and bridgeable power amplifiers are for those that want to sound like a pro! These home-use versions of the renowned Cerwin-Vega! Professional series amplifiers. The same capability for shock and awe, but with input/output connections and a form factor suited for performing at home versus on stage.
Packing a Punch!
These workhorses have the muscle to accommodate the most demanding audio challenges. With power ratings of up to 1800 watts* (for the CXA 8) and 2800 watts* (for the CXA 10), exceptional THD (Total Harmonic Distortion) and Signal-to-Noise ratings, the CV Series power amps are the right choice for a wide range of music and home theater applications.
-
Stereo Output Power: 8ohms: 400W | 4ohms: 600W | 2ohms: 900W
-
Bridged Mono Output Power: 8ohms: 1200W | 4ohms: 1800W
-
Signal to Noise Ratio: 20Hz-20kHz: 102Db
-
Distortion: SMPTE-IM: 0.01%
-
Voltage Gain: 33dB
-
Output Circuitry: Class AB
-
Current Consumption: 240 VAC; @ 1/8 power @ 4ohms 4.4 amps | @ 1/3 power @ 4ohms 6 amps | @ Full power @ 4ohms, 9.5 amps
-
Distortion: 20Hz-20kHz @ 1/2 Power 0.01% | 1kHz @ Full Power 0.10%
-
Frequency Resp: (+/-0.5db) 20 Hz - 20 kHz | (+/- 3 dB) 5 Hz - 60 kHz
-
Damping Factor: 400Hz: 280
-
Input Impedance: 15k ohm unbalanced | 30k ohm balanced
-
Input Clipping: 22dBu
-
Connectors: (Input) Unbalanced RCA input and link out | (Output) 5-way binding post
-
Controls: (Front) AC power switch / Channel 1 & 2 volume | (Rear) HPF Switch / Limiter Switch / Mode Selector Switch
-
Indicators: (Power On) Light Blue | (Signal) Dark Blue | (Limit-Clip) Red
-
Power Requirements: 240VAC, 50Hz
-
Dimensions: 18.9”H x 3.4”W x 16.5”D
-
Weight: 39.6 lbs.
