CE Labs Cat5e Distribution Amplifier Receiver with Cable Length Equalizer

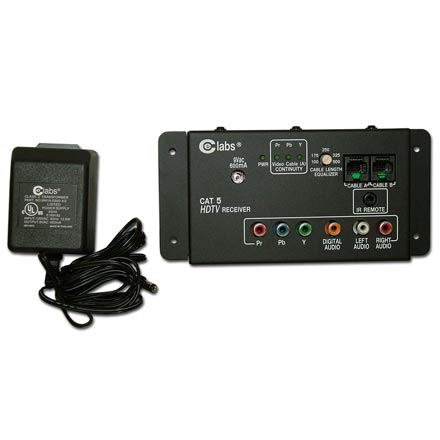

CE Labs Cat5e Distribution Amplifier Receiver with Cable Length Equalizer CEL1021

Item Condition: New


In Stock
List Price $112.99
Your Price $69.99
You Save $43.00 - 38%
Qty

CEL1021

Description

Model CAT5RX High Performance Cat5 Audio/Video Distribution Receiver
Distribute high definition component or composite video and digital or left and right audio over extended distances using CAT5 wire. Use in conjunction with Model CAT5TX.
  • Use in conjunction with Model CAT5TX
  • Cable length equalizer for long distances
  • Video continuity LEDs to ensure all signals are transmitting
  • IR output
  • Dimensions: 4-3/8" x 3-1/2" x 1"
  • Weight: 1.95 lbs
  • Power Requirement: External 9 or 10 volt AC @ 600mA with a (2.1mm center) Coaxial connector
  • NOTE: Composite Video may be used for video security or with standard video monitors
    Video Specifications:
  • Nominal Input Level: 1 Volt peak to peak
  • Gain: 1 volt into 75 ohms (2 volts unterminated)
  • Input Impedance: 75 ohms
  • Output Impedance: 75 ohms
  • Isolation port to port: >65dB
  • Isolation out to input: >80dB
  • Return loss: >30dB
  • Video bandwidth: >50MHz (HDTV requires 37MHz min)
  • Distance: 300 feet @ 1080i (500 feet with Cat6 cable)
  • 3 Composite video signals may be substituted on the individual component video inputs (1000ft max)
    Audio (Analog)
  • Nominal Input level: 1 volt peak to peak
  • Gain: Unity (slightly reduced at max cable length)
  • Input Impedance: 22k ohm
  • Output Impedance: 1k ohm
  • Frequency Response: 20hZ to 20kHz
  • Signal to Noise: 80dB @ 1 volts out
    Audio (Digital)
  • Supports standard SPDIF digital audio.
