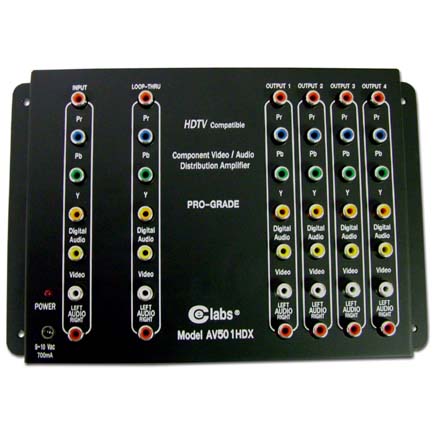

CE Labs 5-Way HDTV/Component and Composite AV Distribution Amp
Item Condition: New
|
|
List Price
|
$163.84
|
|
Your Price
|
$144.99
|
|
You Save
|
$18.85 - 12%
|
|
CEL1004
Description
Model AV501HD 5-way HDTV, Component,Composite Video, Digital Audio, Left/Right Audio Distribution Amplifier allows for multiple signal distribution equal to source signal output with no signal loss. You can daisy chain several units for larger displays with great picture quality. The heavy duty metal housing provides excellent shielding.
- 1 input
- 5 outputs
- Allows up to 150 ft. runs
- HDTV
- Component (Y, Cb Cr or Y, Pr, Pb)
- Composite Video Digital Audio
- Left/Right Audio
- Power Requirement: 9V DC, 500 MA
- Dimensions: 9-1/16in x 6-1/2in x 1-1/4in
- Weight: 3.30 lbs
- Power Supply included
Video Specifications:- Gain: 2 Volt unterminated, 1 Volt Terminated: 75 ohms ± 5%
- Input Impedance: 75 ohms ± 5%
- Output Impedance: 75 ohms ± 5%
- Video Insertion Loss: 50Hz to 10MHz < .40dB
- In to Out Isolation: 50Hz to 10MHz 32dB port to port
- Out to In Insolation: 50Hz to 10MHz 60dB
- Return Loss: 50Hz to 10MHz 20dB
- Video Bandwidth: > 100MHz
- Audio Response: > 100KHz
Audio Specifications:- Gain: Unity
- Input Impedance: 22k ohm
- Output Impedance: 1k ohm
- THD: 0.05% at 1.0 Volts input level
- Frequency Response: 20Hz to 100KHz
- Channel Separation: >75dB @ 1KHz
- In to Out Isolation: 60dB
- Out to Out Isolation: 60dB
- Signal to Noise: 100dB re 2 Volts (out)
- Supports standard SPDIF digital audio
- Unity gain when terminated into 75 ohms (2X gain high imp.)
- Greater than 50MHz of bandwidth to ensure minimal degradation. (If not used for digital audio,this port can be used to switch standard video).
