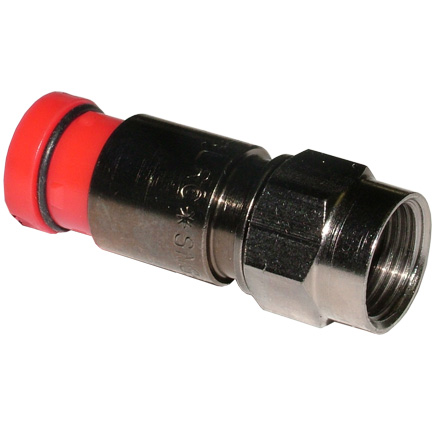

Thomas & Betts Ultimate Model SNS1P6U Snap-N-Seal RG-6 Connectors, qty50

Belden Ultimate Model SNS1P6U Snap-N-Seal RG-6 Connectors, qty50

Item Condition: New

Out of Stock

List Price	$39.99
Your Price	$19.99
You Save	$20.00 - 50%

TNB5008

Description

Model SNS1P6U Ultimate Connectors, the newest addition to the Snap-N-Seal® system. With its user-friendly, pre-positioned and detachably coupled plastic sleeve, the Ultimate Snap-N-Seal Connector incorporates time-proven for a reliable connection! Now you can use the same connector for 6 Series SCTE specification drop cables including 60% braid, tri-shield and quad shield. To reduce assembly time and simplify installation, the plastic sleeve is pre-positioned and detachably coupled to the connector body. The plastic sleeve's separability from the connector body further simplifies difficult installations. Bag of 50.

50 connectors per bag
True 360 degree compression onto cable ensures superior RF shielding performance, -95dB effective shielding (typical on 60% bonded foil cable) and provides superior RF integrity
Installation requires one-step 1/4" - 1/4" cable preparation
Quad-sealed system prevents moisture migration
Incorporates an iridescent chromate finish plus UV resistant plastic and O-rings to provide a reliable, environmentally sealed product
Manufactured of high quality 360 brass, cadmium plated for maximum corrosion resistance.
Superb return loss performance of -30dB to 1GHz
Connector to Cable retention exceeds 40 lb. minimum as specified by the SCTE
