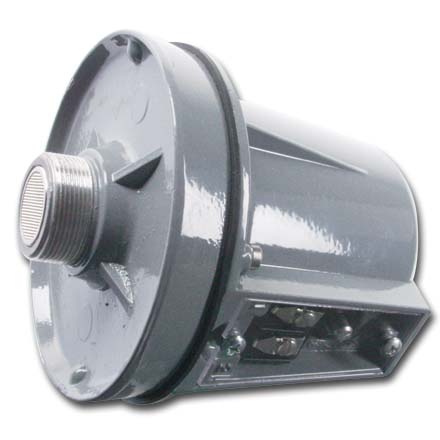

Compression Driver 30 W, w/ transformer
The PD-30T is a fully environment-resistant compression driver for indoor or outdoor applications recommended for use in expansive and/or high-ambient sound-level areas.
The unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300 - 3,900 Hz (+5dB).
Transformer-equipped Model PD-30T incorporates the exclusive Atlas Sound Vari-Tap® Control/Connect Center with a screwdriver selectable ohms/watts switch.
The integral 70V line matching transformer is varnish impregnated for maximum environment resistance and life expectancy. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection.
The PD-30T is terminated in standard 1-3/8"–18" thread male couplings for use with screw-on horns.
-
30-Watt Power Rating
-
Environment-Resistant Construction for Indoor/Outdoor Use
-
Extended Frequency Response Range for Optimum Intelligibility
-
Outstanding Sound Reproduction and Power-Handling For Signaling, Music and Public Address Systems
-
BX-1A Conduit Adapter Compatible
-
Dimensions: 4.5”(D) x 4.5”(Dia.)
-
Freq. Resp: 300-3,900 Hz
-
Impedance: 70.7V
-
Power Rating: 30W
-
Sensitivity: 113.6 (Avg)
