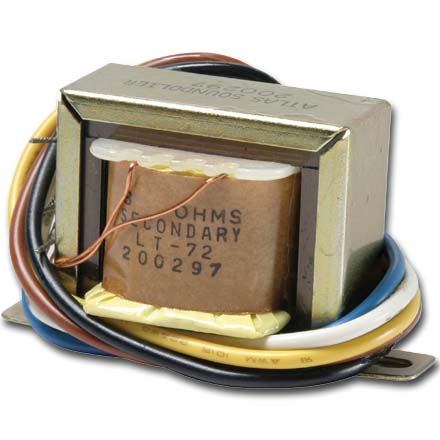

The LT72 General purpose transformer provides economical matching of loudspeakers for most distributed sound applications.
The insertion loss does not exceed 1.5dB and frequency response is +1.5dB from 100 Hz to 10 kHz. Primary taps are .5, 1, 2 and 5 watts. Secondary impedance is 8 ohms. Model LT-72 is designed for use with 70.7 and 25V volt lines.
-
70.7V / 25V Line Matching Transformer
-
Compact Footprint
-
Dimensions: 1.375”(H) x 1.75”(W) x 0.75”(D)
-
Freq. Resp: 100-10,000 Hz
-
Power Taps: 0.5, 1, 2, 4
-
Power Rating: 4W
-
Primary Voltage: 70.7/25
