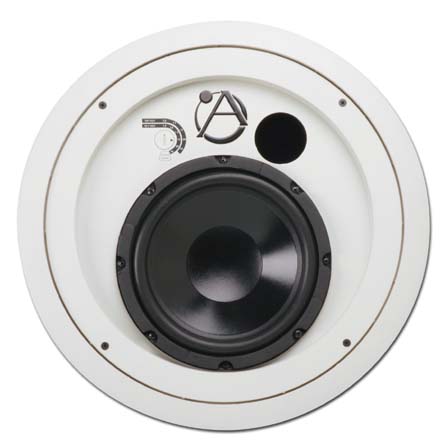

Atlas FAPSUB 8" Ceiling Subwoofer

Atlas FAPSUB ATL1036

Item Condition: New

In Stock
List Price $234.99
Your Price $199.99
You Save $35.00 - 15%



8" Tuned & Ported 60W @ 70.7V/100V Ceiling Subwoofer System

The FAPSUB adds impressive low frequency response to any full range distributed system.

The FAPSUB consists of a highly efficient 8", 8 ohm subwoofer designed and built by Atlas Sound to work optimality in the FAPSUB enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer,while the 937 cubic inch, tuned and ported, deep drawn steel enclosure provides bass responsedown to 45Hz (±10dB).

A special low saturation 70.7V/100V transformer is included with 1.9, 3.8, 7.5, 15, 30 and 60 watt primary taps (@70.7V) to match and balance the subwoofer with full range speakers without the need for separate amplification. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling.This tap selector switch also includes a transformer bypass setting for 8 ohm direct coupled applications.




  • Attractive grille and bezel matches aesthetics of other Atlas Sound FAP Series
  • Detachable, Phoenix style, locking, four-pole connector provides for easy daisy chain wiring
  • Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (included)
  • Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
  • High efficiency, passive crossover network eliminates the need for dedicated amplifier and/or active crossover
  • Low crossover point greatly reduces localization (ability of listener to identify the subwoofer location)
  • Uniquely designed, "easy access" input panel design allows for "thru" conduit runs using flexible or rigid conduit
  • Dimensions: 12.75”(D) x 15.75”(Dia.)
  • Frequency Response: 45-120Hz
  • Power Taps: 1.9, 3.8, 7.5, 15, 30, 60 W / 8ohm
  • Speaker Type: In-Ceiling Sub
  • Dispersion: Omni
  • Sensitivity: 89 dB (Avg)
  • UL Listed
