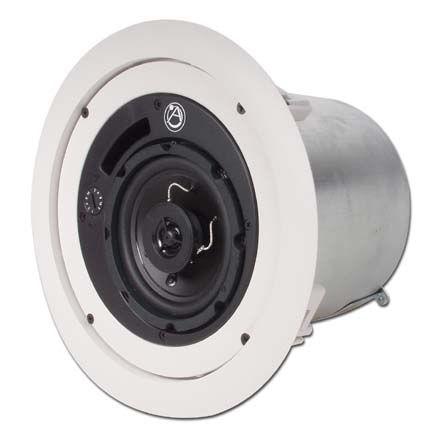

Atlas FAP42T 2-Way Speaker w/ Internal Transformer

Atlas FAP42T ATL1034

Item Condition: New

In Stock
List Price $116.99
Your Price $94.99
You Save $22.00 - 19%



4" 2-Way Speaker System w/ 16-Watt 70.7V/100V Internal Transformer - White

FAP42T combines superior coaxial loudspeaker performance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings.

The FAP42T will satisfy the needs of owners, architects, contractors, and consultants by
delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.

The FAP42T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.


  • 4 Pole detachable "phoenix" style connector allows easy pre-wiring and is convenient for daisy chaining additional Strategy full range speakers or subwoofers
  • Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (Included)
  • Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg"mounting system (Included)
  • Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
  • Extended low frequency response from the 285 cubic inch optimally tuned and ported deep drawn galvanized steel enclosure
  • Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
  • Perfect companion with the FAPSUB subwoofer system when sub bass is required
  • Press-fit grille blends perfectly into contemporary architecture
  • Dimensions: 8.875”(D) x 10.5”(Dia.)
  • Frequency Response: 75-20,000Hz
  • Power Taps: 1, 2, 4, 8, 16 W / 8ohm
  • Speaker Type: Coaxial
  • Sensitivity: 88 dB (Avg)
  • Dispersion: 130°
  • UL Listed
