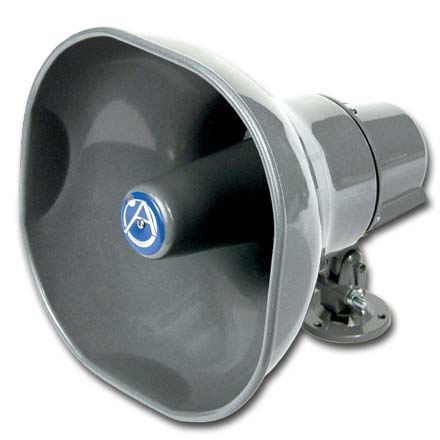

Omni-Purpose Loudspeaker 30-W., w/Xfmr. (25/70.7/100V)
The Model AP-30T is a double re-entrant loudspeakers which deliver 30-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
The AP-30T operates within a nominal frequency response range of 300-12,000 Hz and offers a sensitivity of 121dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies Atlas Sound quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars.
AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
-
Environment resistant for outdoor & indoor use
-
Grey Finish
-
High-Efficiency Driver with Proven Performance Reliability
-
Omni-Purpose® Bracket for Precise Positioning
-
Superior Intelligibility for Voice and Tone Signaling
-
World Recognized for Quality and Dependability
-
Dimensions: 11”(H) x 10”(W) x 10.5”(D)
-
Freq. Resp: 300-12,000 Hz
-
Power Taps: 2, 3.8, 15, 30 @ 70.7V
-
Dispersion: 60°
-
Power Rating: 30W
-
Sensitivity: 108dB
- Operating Temperature: -40 to 70°C
